TDET 170408FR-FA:M0315
Stokta Mevcut
Kategori
Marka
Stok Kodu
BVTCRFQ1LR
Açıklama

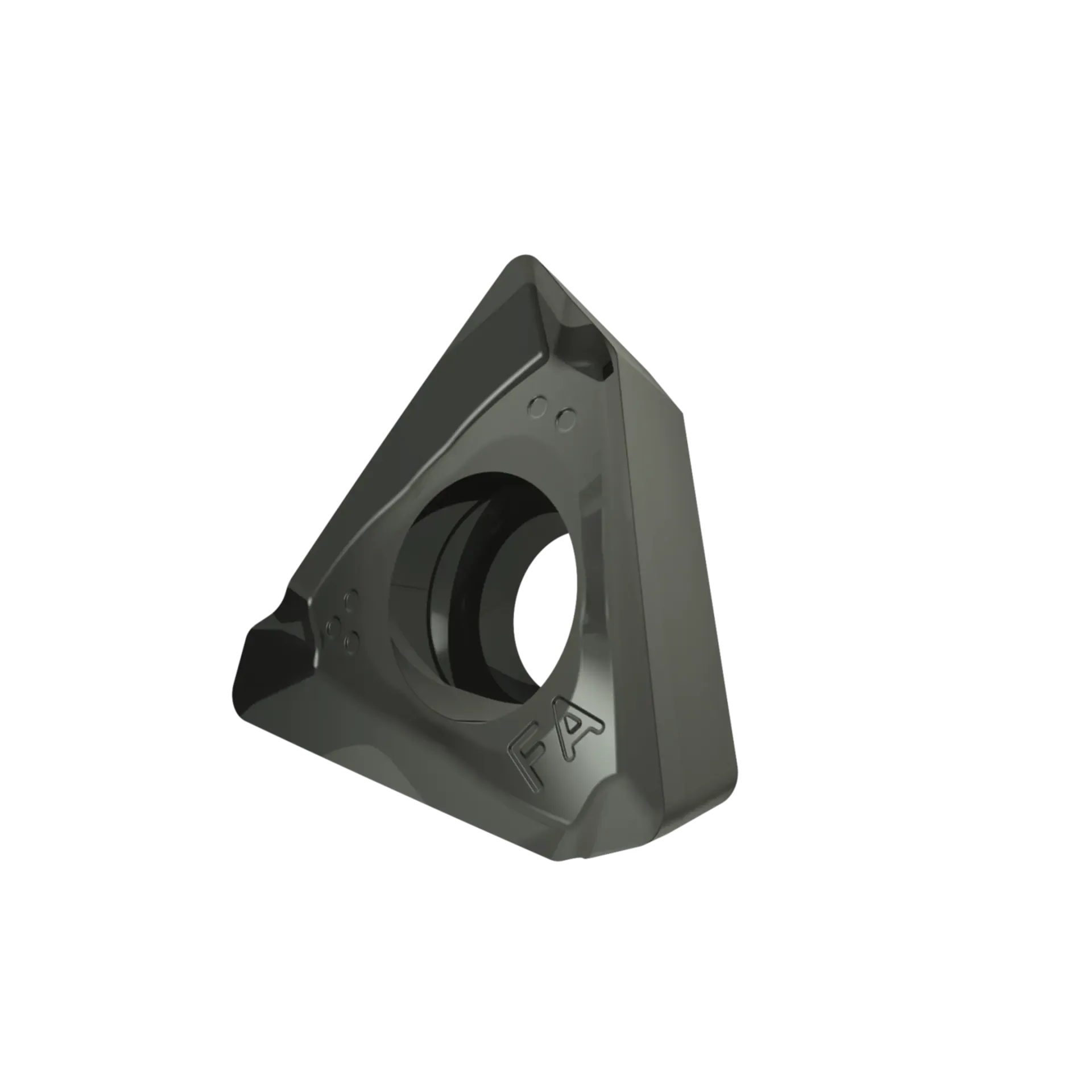

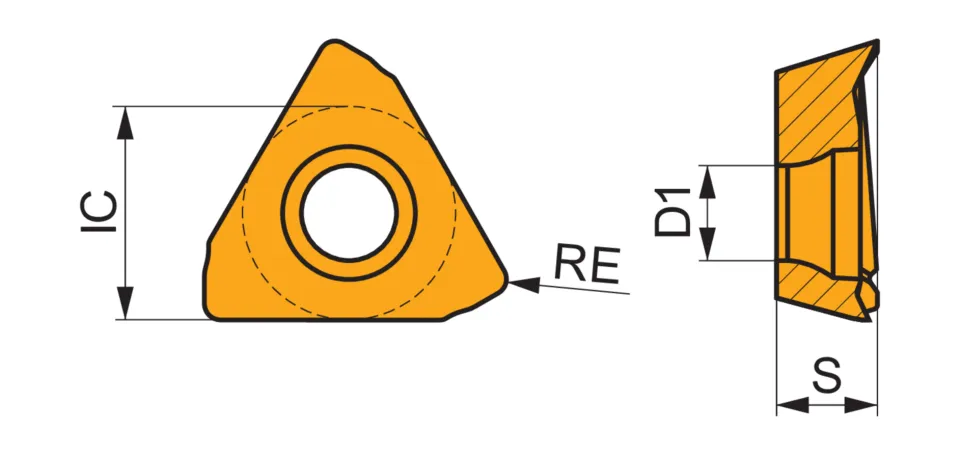

Single-sided triangular milling insert TDET 1704, for a maximum depth of cut of 11.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-E and FA geometry with rounded cutting edges and facet, M0315 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50/M20-M40 for machining of steel, stainless-steel with shoulder mills STD17
Ürün Detayları
KESME KOŞULLARI
N - Demir dışı metaller (ihmal edilebilir oranda demir içeren alaşımlı metaller)
| Uygunluk | ap | vc | f |
|---|---|---|---|
 İlk seçim. |
0.4 - 11 mm | 185 - 840 m/min | 0.04 - 0.48 mm/tooth |
