F3801/8X1

Açıklama

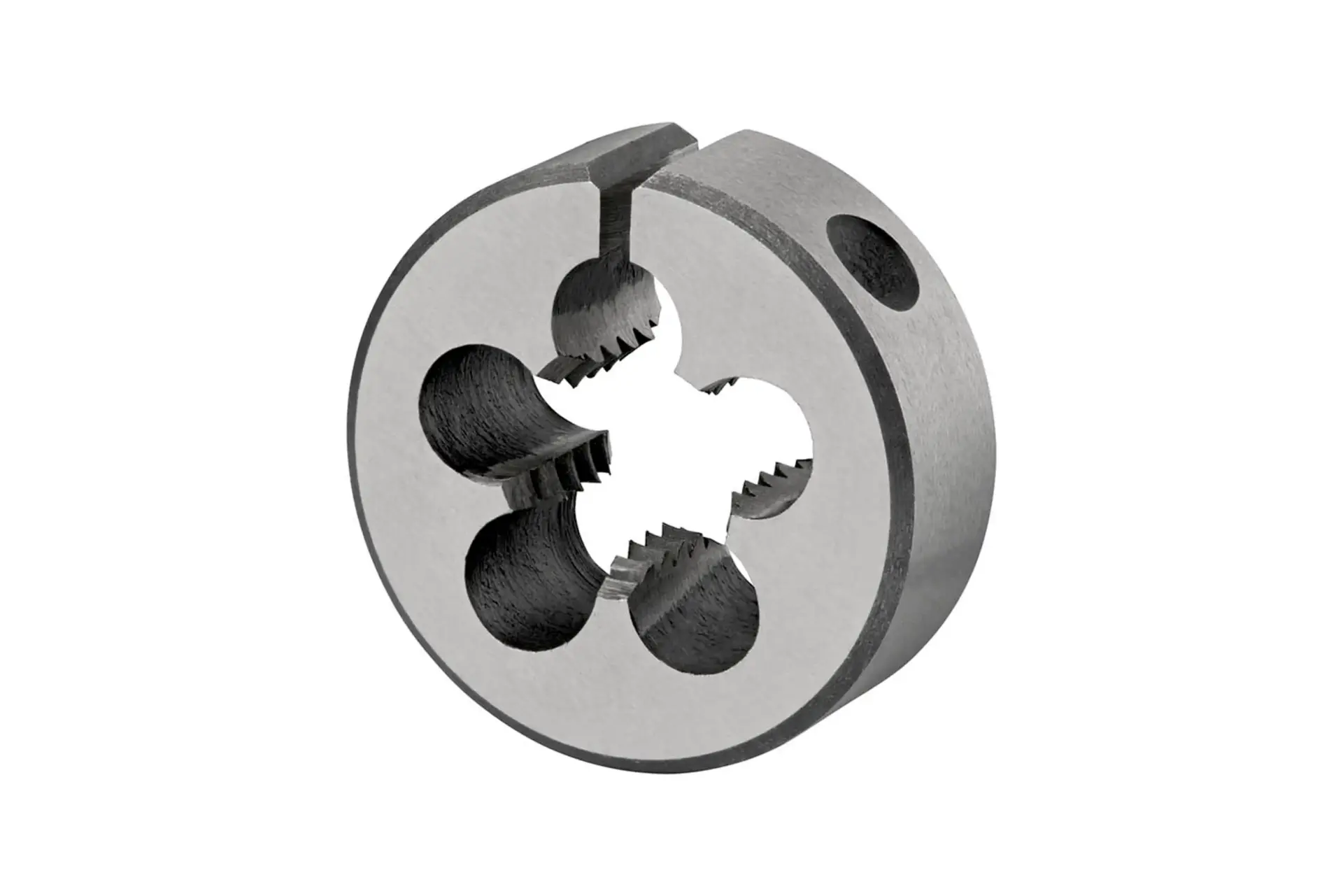

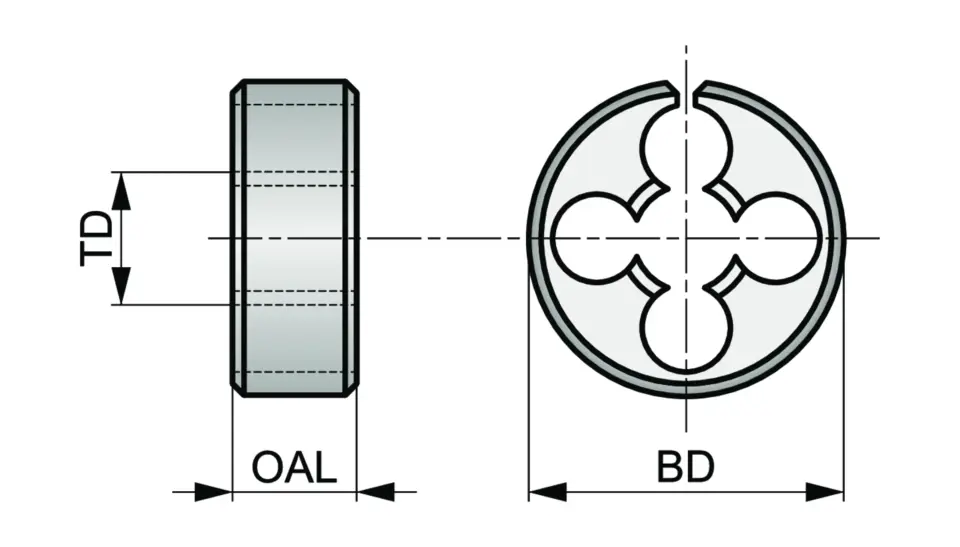

Adjustable circular split die, for National Pipe Taper thread NPT 1/8 inch with 27 TPI, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.006 inch, dimensions according to ANSI standard with 1 inch outside diameter and 3/8 inch thickness, HSS with bright finish for threading in free machining and plain carbon steel and gray, malleable, ductile and compacted graphite cast-iron

Ürün Özelliği

Parlak (kaplamasız)

Diş Formu, Amerikan Ulusal Konik Boru

BS 1127:1950 – Yuvarlak Pafta Standartları.

Pafta Diş Pahı ve Hatve Oranı (1.75×TP)

Yüksek Hız Çeliği Takım Malzemesi

Sağa Dönüş/Kesme
