C4-SVQBL-18090-16
Stokta Mevcut
Kategori
Marka
Stok Kodu
6WPYWFPPMC
Açıklama

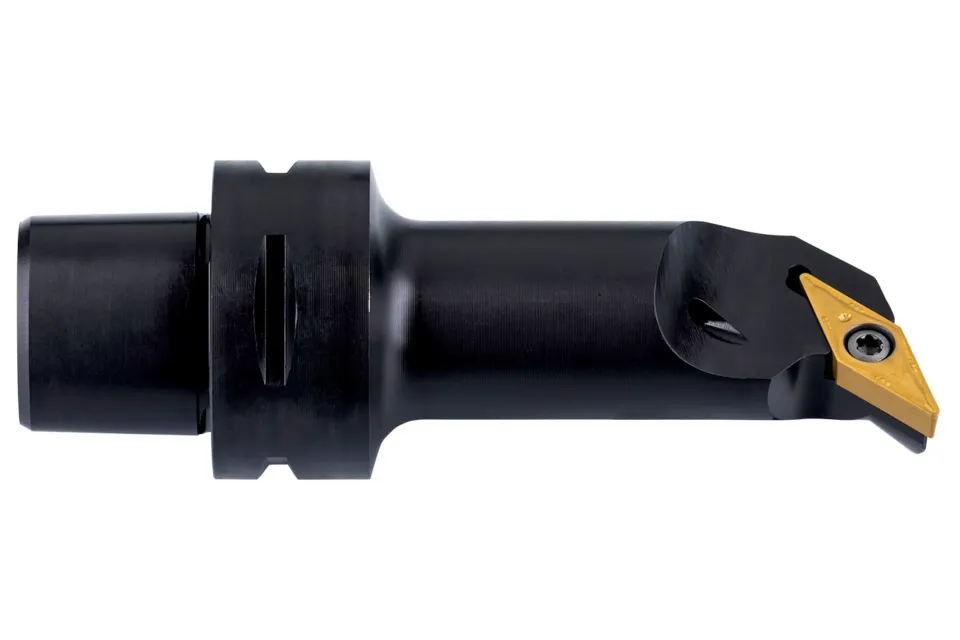

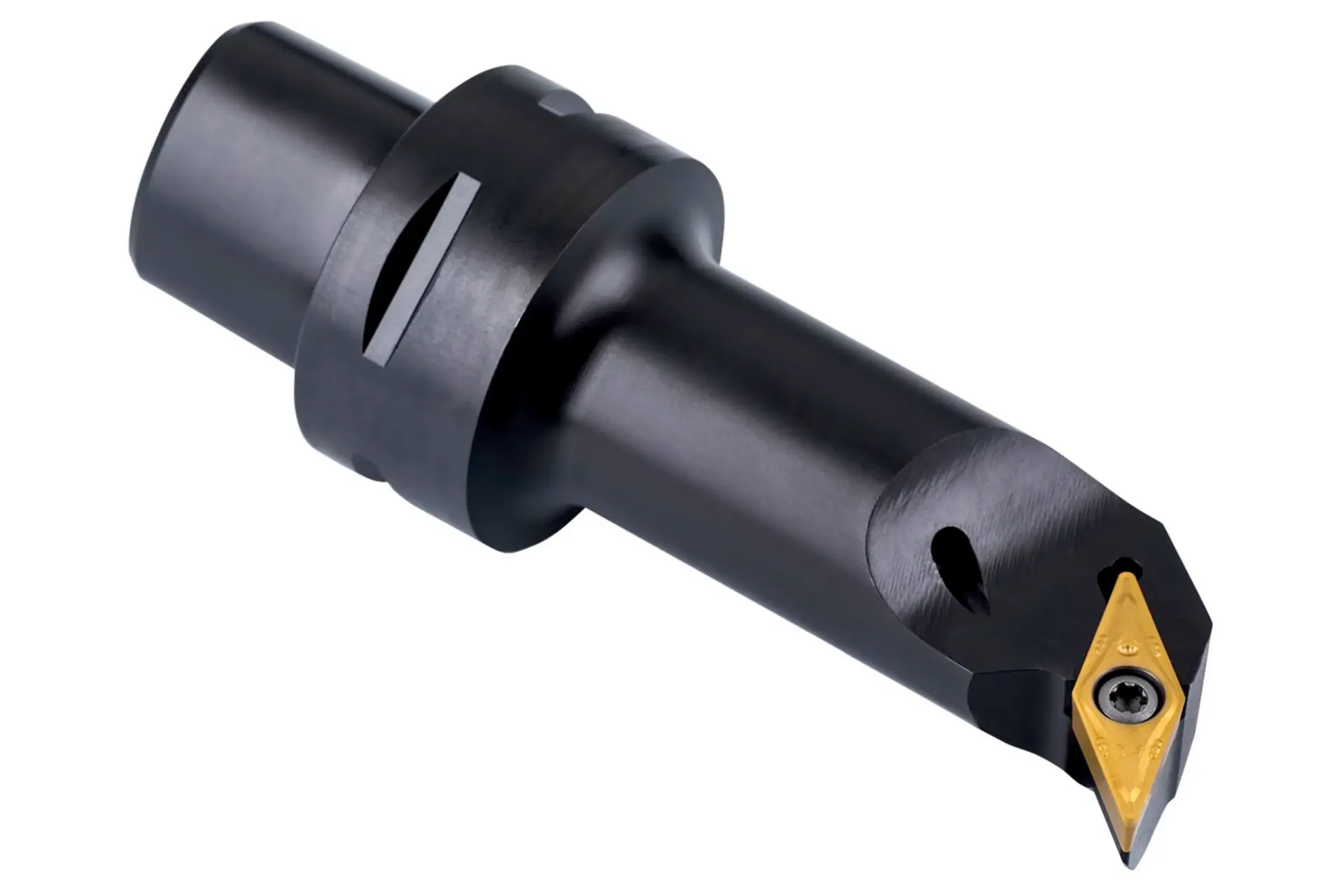

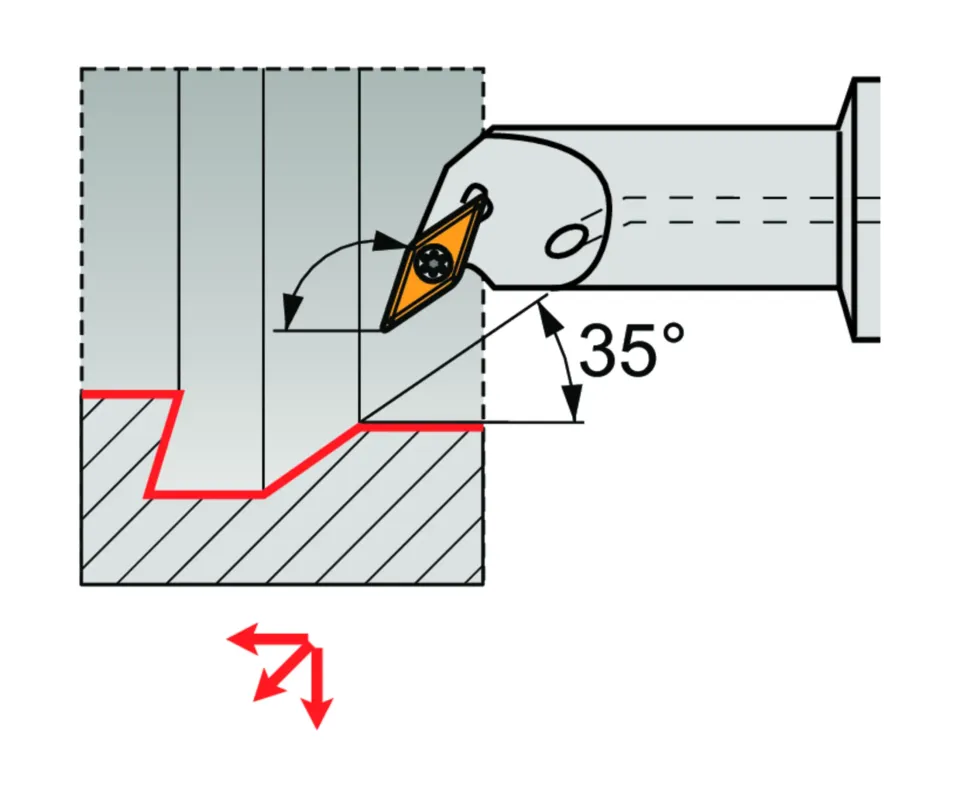

Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation VB.. 1604.. or VC.. 1604.. ), left hand 107°30' end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 18mm funtional width and 90mm protruding length for single and multi-directional copy boring
Ürün Özelliği






Ürün Kullanımı
